This is a simple procedure to show how to use an XML file as datasource to build a datagrid in ASP.
This code basically shows how to display and navigate/page-thru and xml data file

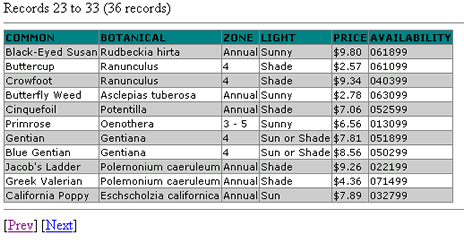

Figure 1
ASP-XML DataGrid

Consider an xml file (plants.xml) of the following format

<BOTANICAL>Sanguinaria canadensis</BOTANICAL>
<LIGHT>Mostly Shady</LIGHT>

If you want to generate a datagrid (figure 1) that will display and navigate through the plants information, simple procedure to accomplish this in ASP will be as follows:

file name: showplants.xml

Sub ShowPlants(iStartIndex,iPageSize)
    Dim iStopIndex ' the stop index used to control the pagesize
    Dim iTotalRecs ' total number of palnts
    Dim bgColor 'grid background color
    Dim xmldoc,nodeList,node,i,j
    'create and load your xml document
    Set xmldoc = Server.CreateObject("Microsoft.XMLDOM")
    xmldoc.async = false
    'check for errors
    'P/S: you can also validate here against your schema
    if xmldoc.parseError.errorCode=0 Then
        'create a list of all plants
        Set nodeList = xmldoc.documentElement.getElementsByTagName("PLANT")
        'make sure your start index is valid
        If iStartIndex<0 Then
        End If
        If nodeList.length>iStartIndex Then
            'set your stop index
            iStopIndex=    iStartIndex+iPageSize
            'validate your stop index
            If iStopIndex>nodeList.length-1 Then
            End IF
            'set and display the total number of records
            iTotalRecs=    nodeList.length
            Response.Write "Records " & (iStartIndex+1) & " to " & (iStopIndex+1) & _
                " (" & iTotalRecs & " records)<hr size=1 noshade>"
            Response.Write "<table border=0 cellspacing=1 cellpadding=1 bgcolor=gray>"
            'print headers
            Response.Write "<tr bgcolor=teal>"
            For i=0 to nodeList(0).ChildNodes.length-1
                Response.Write "<td><b>" & nodeList(0).ChildNodes(i).nodeName & "</b></td>"
            Response.Write "</tr>"
            'navigate list and print records
            For i=iStartIndex to iStopIndex
                'alternate your rows background colors
                If bgColor="#cccccc" Then
                end if
                Set node = nodeList(i)
                Response.Write "<tr bgcolor=" & bgColor & ">"
                For j=0 to node.ChildNodes.length-1
                Response.Write "<td>" & node.ChildNodes(j).Text & "</td>"
                Response.Write "</tr>"
            Response.Write "</table><hr size=1 noshade>"
            'print navigation controls
            If (iStartIndex + iStopIndex)>iPageSize Then
                Response.Write "[<a href='index.asp?s="& (iStartIndex-iPageSize-1) &"'>Prev</a>]"
                Response.Write "[Prev]"
            End If
            If iStopIndex+1<iTotalRecs Then
                Response.Write "&nbsp;[<a href='index.asp?s="& (iStopIndex+1) &"'>Next</a>]"
                Response.Write "&nbsp;[Next]"
            End If
        End If
        'clear objects & free memory
        Set node = Nothing
        Set nodelist = Nothing
        Response.Write "<font color=red>" & xmldoc.parseError.reason & "</font>"
    End If

    'clear objects & free memory
    Set xmldoc = Nothing
End Sub

You can then call this procedure from your ASP page as shown below:

Option Explicit

Const pageSize = 10
Dim index
If IsNumeric(Request("s")) Then
    index = CInt(Request("s"))
End if
<!--#include file="showplants.asp"-->

            <%Call ShowPlants(index,pagesize)%>
